Description

NPBoosted

3 TSB Clips + Transmission Actuator Control Module ACM Valve Body Piston Solenoid Pin Removal Tools fits R35 GT-R GTR GR6 VR38DETT for TSB Clips / Caps Installation Service
Fitment Guide:fits VR38DETT 3.8L V6 Twin TurboFits 2007+ Nissan GTR / GT-R R35Right Hand Drive & Left Hand Drive ModelsJDM / USMD / CDM / EURO

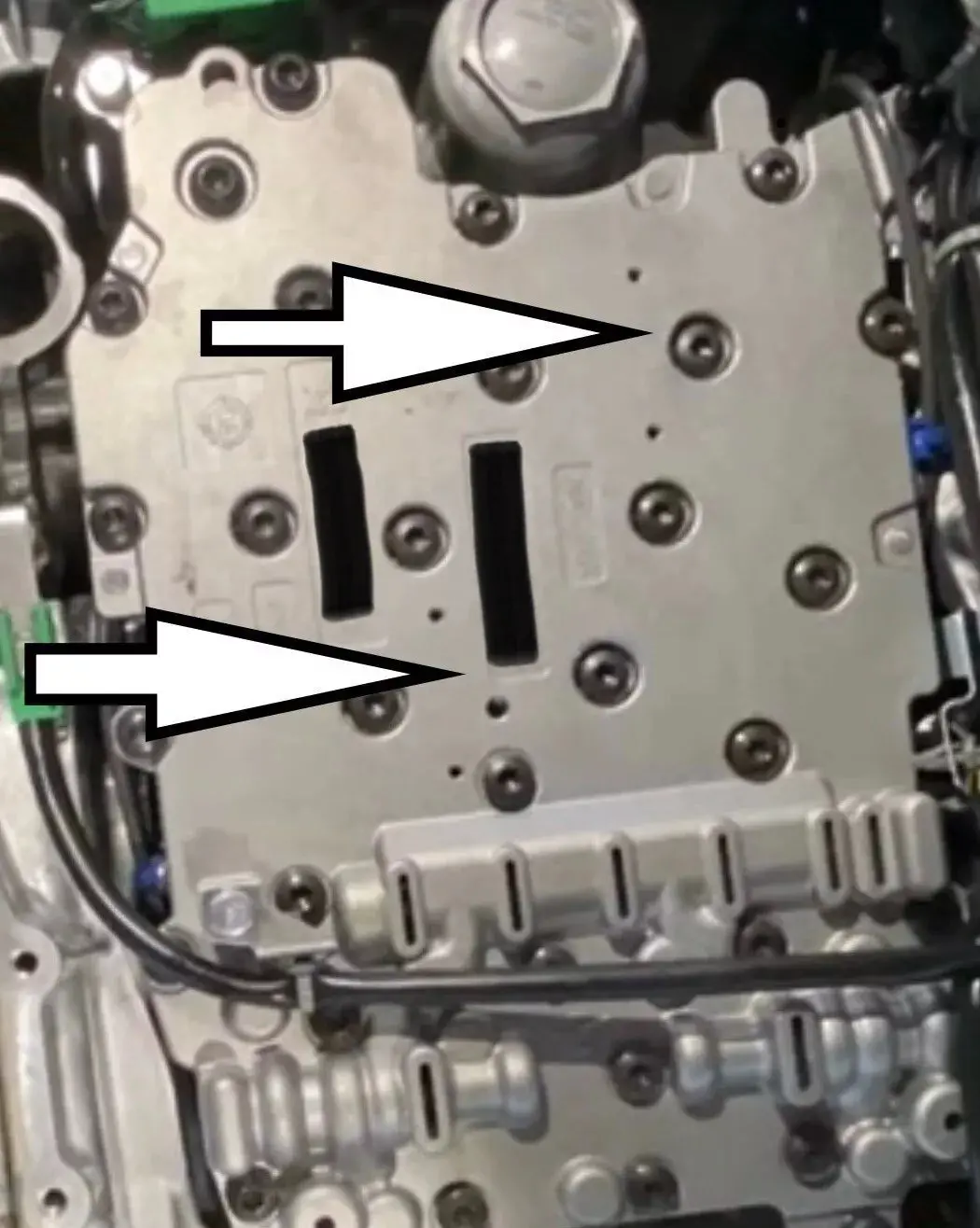

The R35 GR6 2007 to 2011 transmission actuator valve body pistons can rotate away from the shift Sensors, causing issues in the Odd or Even Gears Depending on which pistons have rotated. The TSB Technical Service Bulletin to correct this is to install the TSB clips / caps into the GTR valve body which keeps the pistons in alignment. This Installation Tool Holds the Actuator pistons into place while Removing and installing the Actuator Control Module ACM in the GTR Transaxle.
Codes Related to TSB Clip Service Issue2009 – The MIL is on and DTC P0729 ( 6GR Incorrect Ratio ) is stored2010 – The MIL is on and DTC P0729 ( Sleeve A1 Function ) is stored2011 – The MIL is on and DTC P2832 ( Shift Fork A ) is stored

Fast & Free Shipping: USA & CanadaWorldwide Shipping: $49.95
Package Contents:(3) Aftermarket Valvebody TSB Clips(2) Aftermarket Transmission Valve Body Actuator Control Module Installation / Removal Tool – Actuator Piston Position Lock Holding Pins

Professional Installation is Highly Recommended (No Instructions Included)

Cross Reference Part Numbers:

NP-ACMCLIPS-5, 32886-KB50A, 32886KB50A

If you have any issues or concerns with an order please contact us first, we will make sure to find a solution. Thanks

For international shipments outside of Canada, these items are Made In China and orders may be subject to additional duties, taxes, charges, fees, and costs associated with the shipment of the item once it has reached its destination. These charges are the buyer’s responsibility.
