NPBoosted

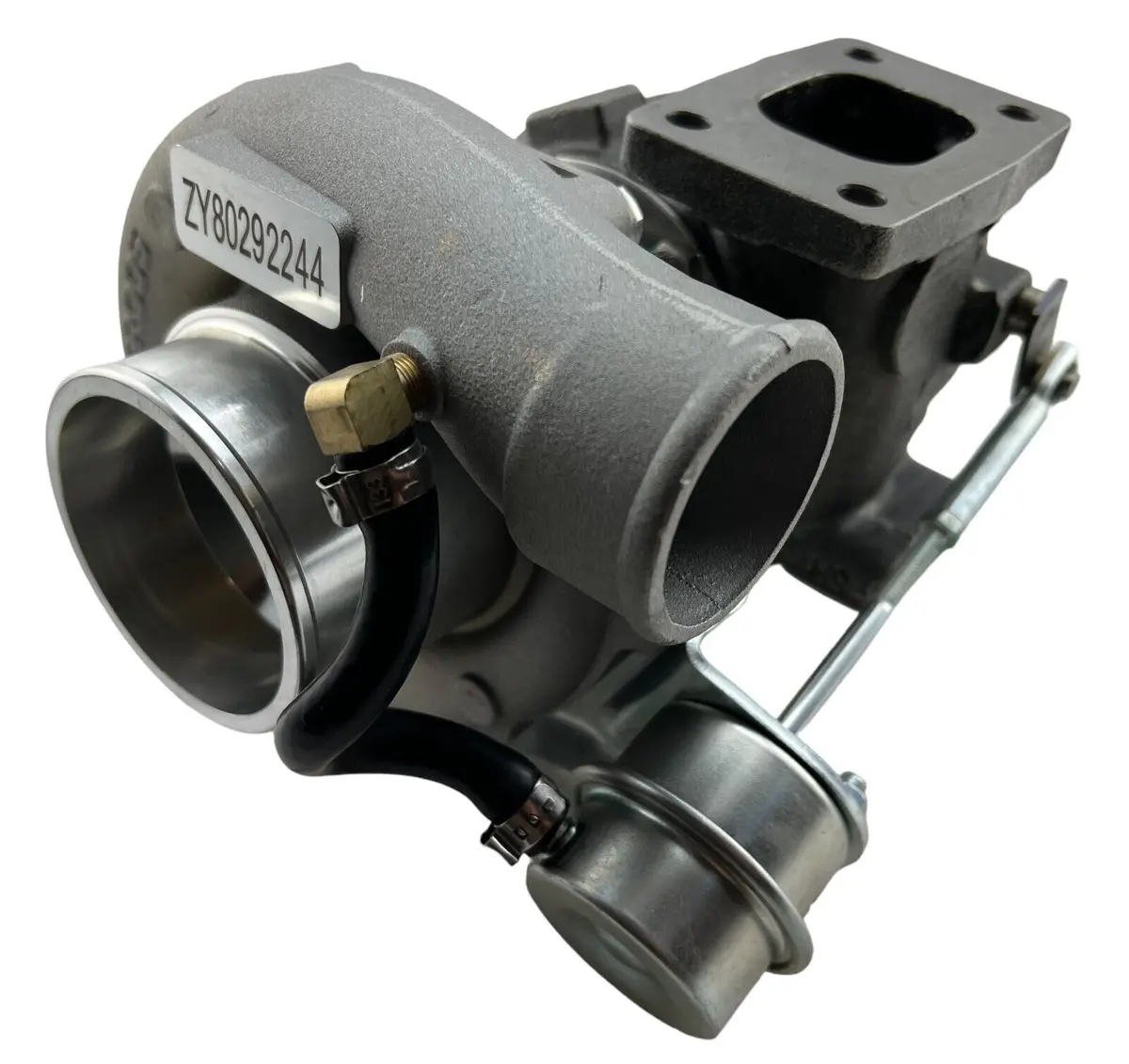

Upgraded 6+6 Billet Wheel Aftermarket Turbocharger GT28 GT2871 GTX2871 Turbo Compressor A/R .64 T25 Turbine Internal Wastegate 400HP
Fitment Guide:Import / Domestic / European4 Cylinder / 6 Cylinder250HP to 400HP Output
( Fully Balanced & Tested )
Fast & Free Shipping: USA & CanadaWorldwide Shipping: $99.95
Package Contents:(1) Aftermarket GT2871 Turbocharger Assemblyw/ Internal Wastegate and LinesInstallation Hardware Bolt / Plug / Flanges & Gaskets6+6 Billet Compressor wheel / 10 Blade Exhaust Wheel
SpecsExhaust Inlet Flange: Standard T25 Flange
Exhaust Outlet Flange: 5-Bolt
Turbine Side:
Turbine Trim: 76.3
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Side:
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil Cooled
Wastegate: Internal Wastegate
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Inlet: M12*1.25
Oil Outlet:M14 & 2*M8*1.25
Water: M14*1.5
Oil Drain Thread Pitch: 40mm
Water Thread Size: M14*1.5
Turbo Manifold has T25 Flange ( T28 Flange can be converted to T25 Flange, Adapter is needed )
Professional Installation is Highly Recommended (No Instructions Included)

Cross Reference Part Numbers:

NP-GT2871TRB-1
