NPBoosted

Turbo Rebuild Repair Kit 10 Blade Turbine Wheel / Shaft Upgrade & 11+0 Billet Wheel 67mm x 89mm x 95mm FOR Holset HX35 HX40 HE351 HE341 H1E H1C
Fitment Guide:1989-2007 Dodge Ram 2500 5.9L Diesel1989-2007 Dodge Ram 3500 5.9L DieselHolset H1E H1C Turbo Upgrade 2008+ Dodge Ram Cummins 6.7 VGT Turbo Upgrade
(Machining Compressor Housing & Bearing Housing Required)
(Check Turbocharger Tag for Part Number to Match our OEM #s Above)
Turbocharger OEM # Fitment Guide:HY35HX35HE35HX40HE341HE351
Fast & Free Shipping: USA & CanadaWorldwide Shipping: $99.95
Package Contents:(1) 67mm x 76mm Exhaust Turbine + Turbo Shaft(1) 67mm x 89mm x 95.2mm 11+0 Billet Compressor Wheel(1) Turbo Shaft Nut
Specs:Turbo Shaft / Exhaust TurbineDodge Ram 5.9L Cummins Turbo DeiselHeavy Duty MachineryExcavators & Generators with Cummins EnginesMany More!Shaft and Wheel Measurements:Inducer: 76 mmExducer: 67 mmJournal Diameter: 11.00mmTip Height: 12.2500mmShaft diameter: 7.00mmBlades:10

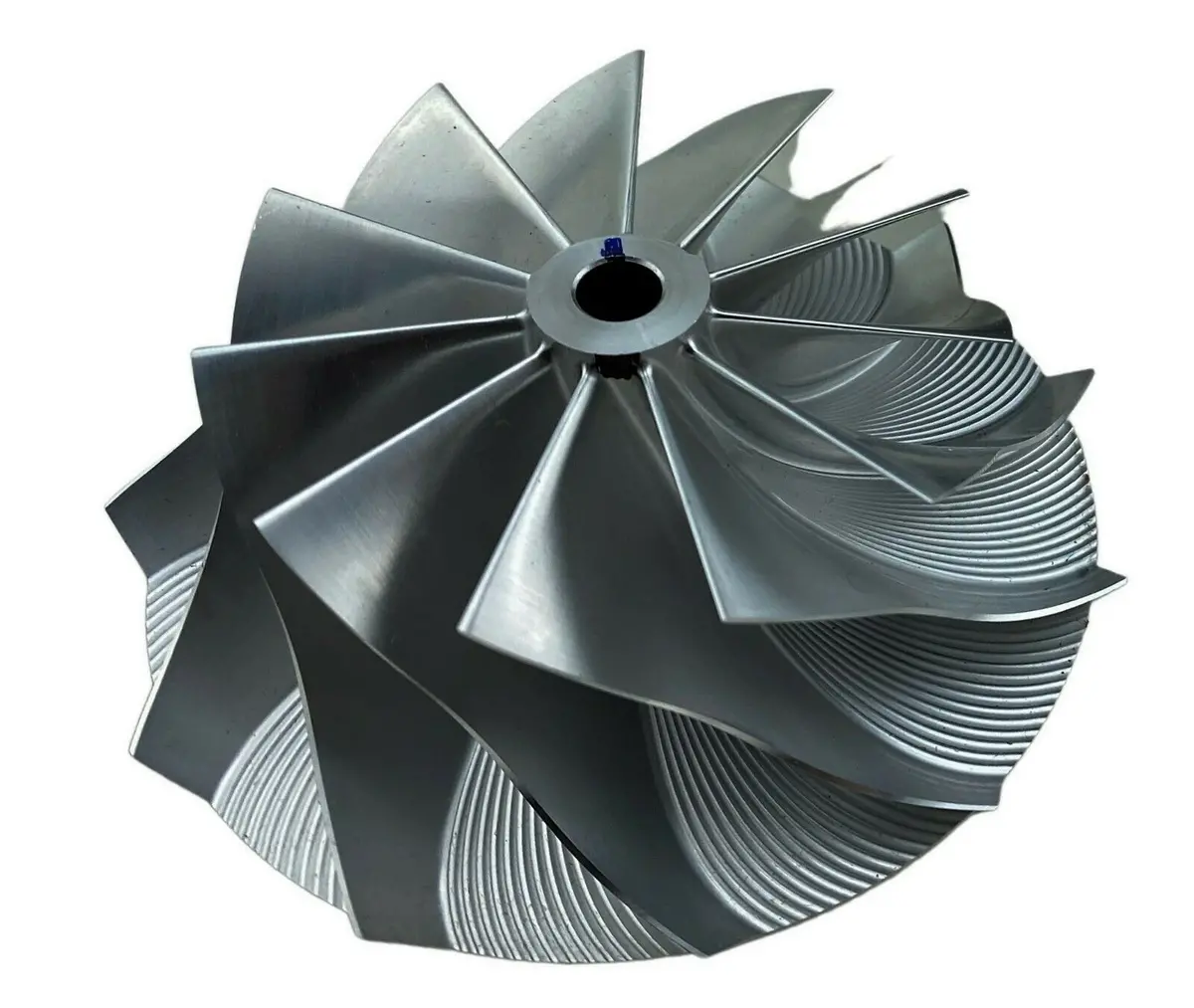

Billet Compressor WheelHX40 67mm / 89mm / 95.2mm Extended TipTip height: 6.37 / Billet 11+0 Blades(Machining Compressor Housing & Bearing Housing Required)Upgrade for HE300VG, HE351VE, HE341VE, HE351, HE341, HX35, HX40, H1E, H1C, HY35 w/ Required Machining
OEM Turbine Specs In Comparison:H1C / HX35 60mm x 70mmH1E / HX40 64mm x 76mmH1E Rare Turbine 67mm x 76mm (OUR TURBINE KIT)
10 Blade Turbine Wheel / Shaft Upgrade ~ 67mm x 76mmThis 10 Blade vs the 12 blade will help relieve back pressure and keep EGT’s down. The shaft will be a little lighter than the 12 blade which will help with spool time. This Turbine is right for you If you are trying to Make More Horsepower over the factory 12 blade turbine and you want to keep your EGT’s down
Upgrade for HX35 HX40 HE351 HE341 H1E H1C
Professional Installation is Highly Recommended (No Instructions Included)

Cross Reference Part Numbers:

HY35, HX35, HX40, HE341, HE351, 3575169, HX35G, HX40W, 3575169, 4027484, 4027448, HE351CW, HX35W,  HE300VG, HE351VE, HE341VE, H1E, H1C, HY35

If you have any issues or concerns with an order please contact us first, we will make sure to find a solution. Thanks
