Description

NPBoosted

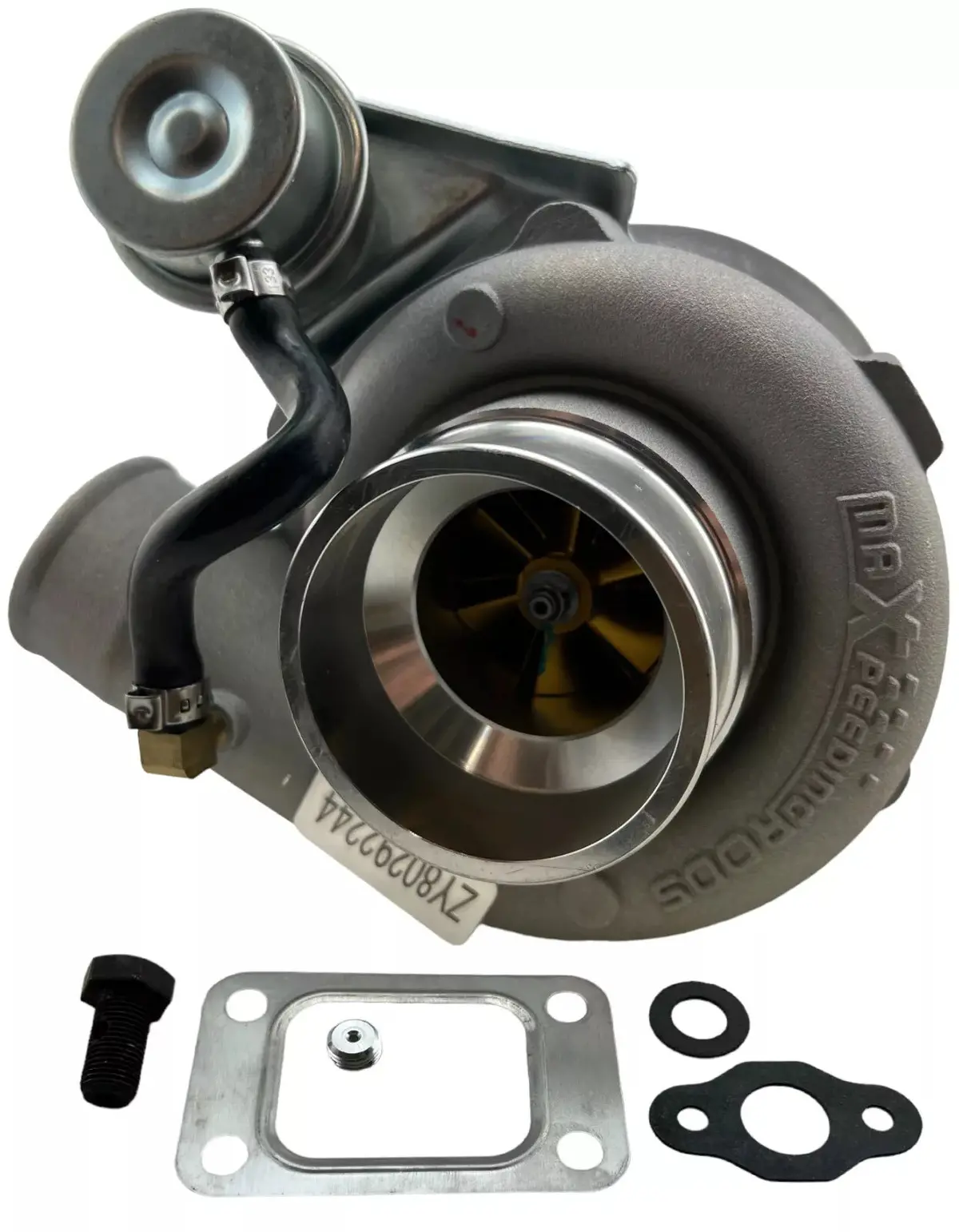

Upgraded 6+6 Billet Wheel Aftermarket Turbocharger GT28 GT2871 GTX2871 Turbo Compressor A/R .64 T25 Turbine Internal Wastegate 400HP
Fitment Guide:Import / Domestic / European4 Cylinder / 6 Cylinder250HP to 400HP Output
( Fully Balanced & Tested )
Fast & Free Shipping: USA & CanadaWorldwide Shipping: $99.95
Package Contents:(1) Aftermarket GT2871 Turbocharger Assemblyw/ Internal Wastegate and LinesInstallation Hardware Bolt / Plug / Flanges & Gaskets6+6 Billet Compressor wheel / 10 Blade Exhaust Wheel
SpecsExhaust Inlet Flange: Standard T25 Flange
Exhaust Outlet Flange: 5-Bolt
Turbine Side:
Turbine Trim: 76.3
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Side:
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil Cooled
Wastegate: Internal Wastegate
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Inlet: M12*1.25
Oil Outlet:M14 & 2*M8*1.25
Water: M14*1.5
Oil Drain Thread Pitch: 40mm
Water Thread Size: M14*1.5
Turbo Manifold has T25 Flange ( T28 Flange can be converted to T25 Flange, Adapter is needed )
Professional Installation is Highly Recommended (No Instructions Included)

Cross Reference Part Numbers:

NP-GT2871TRB-2

For international shipments outside of Canada, these items are Made In China and orders may be subject to additional duties, taxes, charges, fees, and costs associated with the shipment of the item once it has reached its destination. These charges are the buyer’s responsibility.
