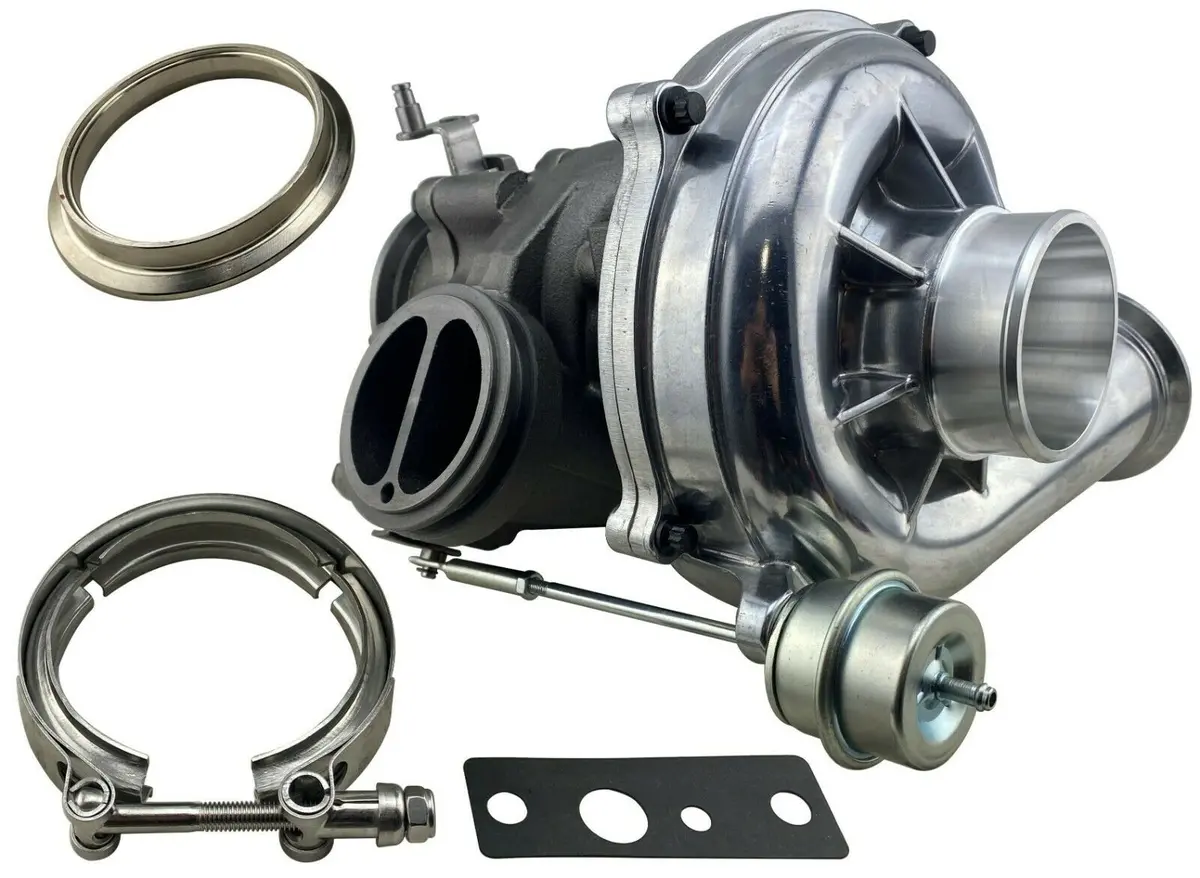

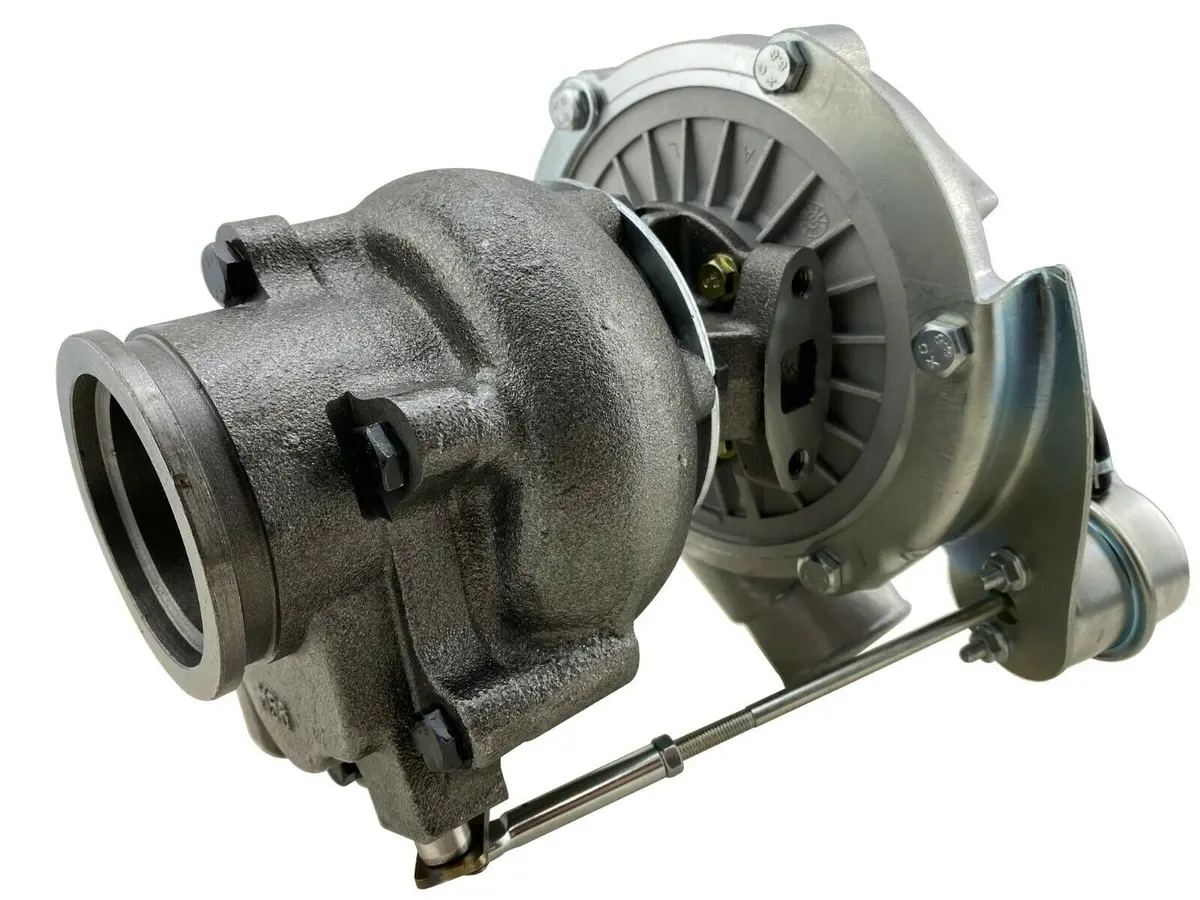

Hybrid T04E T3/T4 .63 Turbo Turbocharger Compressor 350HP w/ Internal Wastegate 2.5″ Exhaust VBand
Fitment Guide:T3/T4 Hybrid Turbocharger is designed to be used on engines displacing 1.6L-2.5L and is typically good for around 400HP. They are also commonly used in twin turbo applications.
In this case those figures would be doubled 3.2L-5.0L engines up to 800HP. Horsepower ratings are generally meant to express the turbochargers maximum airflow capability
T3/T4 Hybrid Turbochargers are created by installing a T4 compressor wheel and housing onto a T3 turbine housing, wheel & center section.
T3/T4 hybrid turbocharger assembly is designed for engines where a T3 turbocharger is too small to reach the desired maximum horsepower but using a T4 turbocharger would create too much turbo lag.
Fast & Free Shipping: USA & CanadaWorldwide Shipping: $99.95
Package Contents:(1) Hybrid T3/T4 Hi FLow Turbocharger Kit(1) Installation Kit: Gaskets / Bolts / Washers / 2.5″ Vband + Ring
Specs:4 Bolt Exhaust FlangeCapable of 8 PSI or 15-25 PSI output at peak powerInternal Wastegate setting: 8 PSI
Compressor:3″ Inlet50.55 Inducer57 Trim
Turbine:T3 Type Turbine Flange.63 A/R65.2 Inducer56.06 Exducer
Recommended boost pressures are 7psi (.5 Bar) to 21psi (1.5 Bar)Boost pressures should not exceed 30psi (2 Bar)
Professional installation is highly recommended (No Instruction Included)
This is a universal application turbo, so modification would be required for some vehicles

Cross Reference Part Numbers:

NP-T3T4TC, T3/T4, T3 T4
