Description

NPBoosted

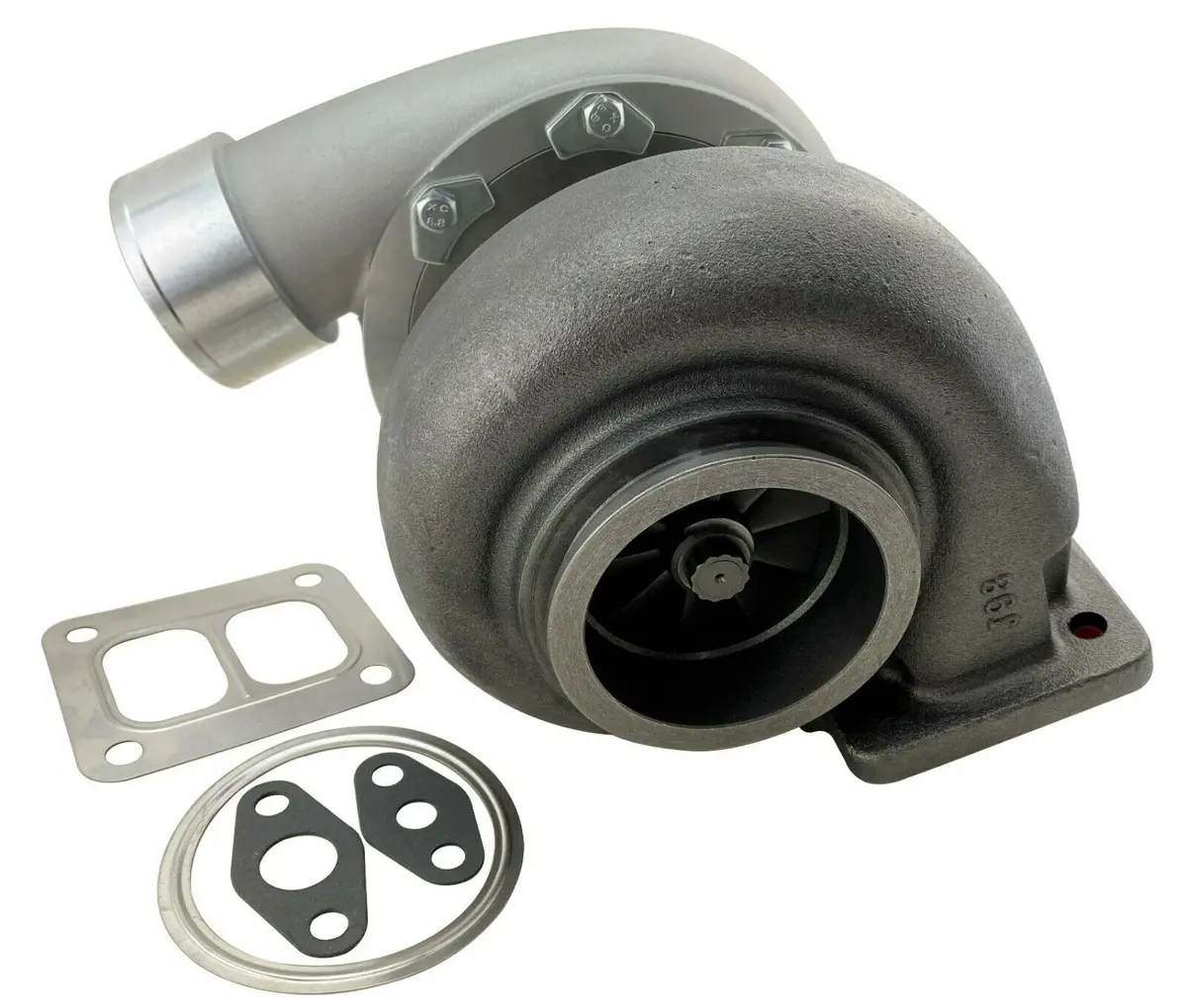

Turbocharger Turbo Kit w/ Gaskets GT45 T4 T66 V-Band 1.05 A/R Trim 92mm 800HP
Fitment Guide:Universal FitmentJDM / USDM / CDM / Domestic / EuropeanCustom Turbocharger Applications
Fast & Free Shipping: USA & CanadaWorldwide Shipping: $99.95
Package Contents:(1) GT45 Aftermarket Upgraded Turbocharger(4) Gasket Installation Kit
Specs:Compressor:Trim: 69A/R: .66Inducer: 68.7Exducer: 97.8 Turbine:Trim: 92A/R: 1.05Inducer: 87.4Exducer: 77
weight: 17.25kgIntake Inlet / Outlet: 3.75″ / 2.25″Compressor A/R: 0.66Compressor Inducer / Exducer: (MM) 68.70 / 97.80Compressor Trim: 69Exhaust (Downpipe) Flange: 3.50″ V-BandExhaust (Turbo Manifold) Flange: Standard T4 4-BoltTurbine A/R: 1.05Turbine Inducer / Exducer: (mm) 87.40 / 77.00Turbine Trim: 92
Capable of boosting horse power up to 800+ BHPHigh quality material, cast housing with durable steelT4 4 bolt exhaust flangeV band downpipe flange pattern 3.50″Intake inlet & outlet: 3.75″ & 2.25″dynamic balanced test
The GT45 turbocharger assembly is designed to be used on engines displacing 1.6L-8.0L and is typically good for around 800HP. Horsepower ratings are generally meant to express the turbochargers maximum airflow capability. Recommended boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar) and boost pressures should not exceed 30psi(2 Bar). Exceeding 21psi(1.5 Bar) of boost pressure can significantly reduce a turbochargers lifespan. Generally speaking 14psi(1 Bar) is good for a 100% increase in horsepower from a naturally aspirated engine. Also factory non-turbo engines without forged internal components on high octane pump gas (91-92 octane) it is not recommended exceeding 7psi (.5 Bar) of boost. Doing so could result in damaging your engine.
Professional Installation is Highly Recommended (No Instructions Included)

Cross Reference Part Numbers:

NP-GT45TRB
