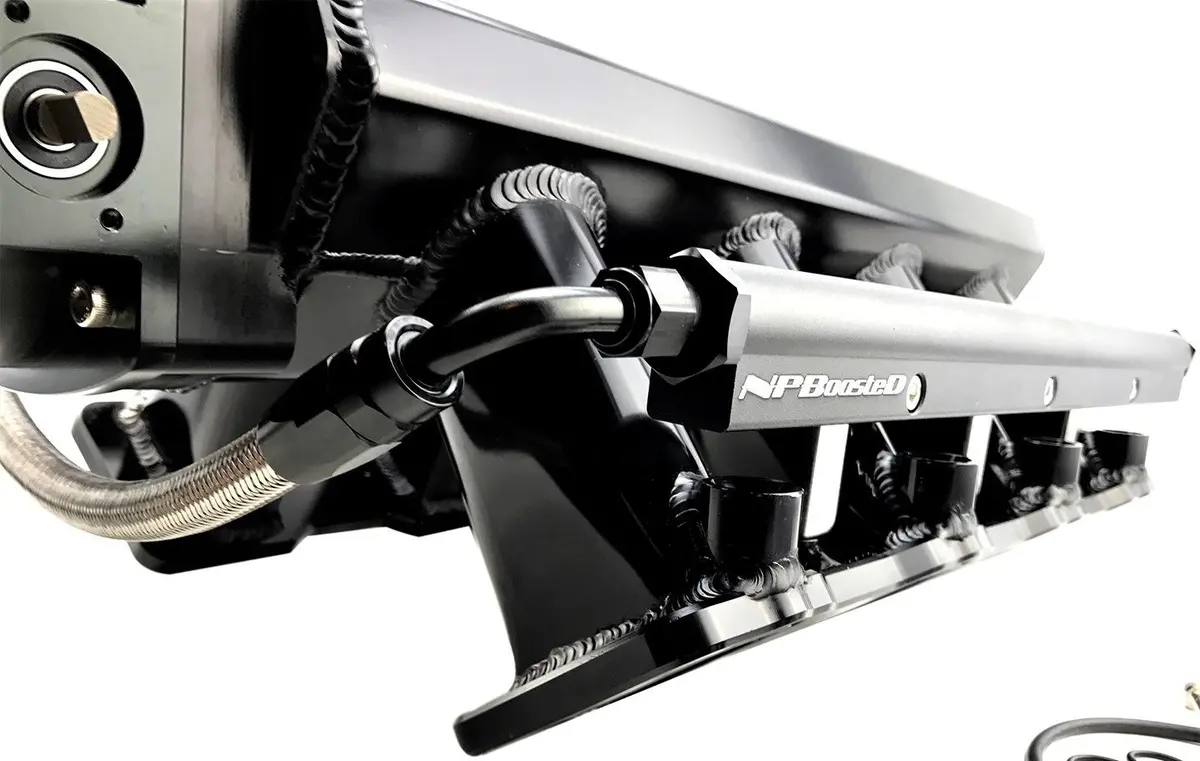

High-Flow Aluminum Intake Manifold and Fuel Rail Kit for Chevy 6.2L L92, L99, LS3, and LSA Engines

Description

LS3 / 6.2L 6.0L 5.3L 4.8L / Tall Custom TIG Welded NPboosted Intake Manifold Kit102mm Throttle Body & Fuel Rails w/ AN fittings  (Tig Welded Aluminum) / LS LS3 L92 Long Length 225mm Raised Port Height (Inner Manifold Velocity Stacks)  ~102mm Large Mouth Throttle Body Kit Included~ Fuel Rails Included With mounting Hardware and Steel Braided Center Connecting Fuel Line

CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-BASED)

• 4.8 L / 293 CI (L20, LY2)
• 5.3 L / 325 CI (LC9, LH6, LH8, LMG, LY5)
• 6.0 L / 364 CI (L76, L96, LFA, LY6)
• 6.2 L / 376 CI (L92, L99, LS3, LSA)

Fits: LS based engines with “Raised Rectangle” intake port shapeAftermarket Hoods Needed for Clearance on Most applications Features:Multi Port Fuel Injection typeThrottle Body Standard 4 Bolt OEM design0 Degree Throttle Body flange Angle3mm Plenum Thickness – Handles Forced Induction up to 35PSI8.9″ Manifold Height Included With Manifold kit: Lower Manifold Ports O rings – Throttle Body O rings – AN fitting O ringsBolts / Nuts / Lock washers – All Hardware NeededVacuum Line Fittings FAST FREE SHIPPING: USA & CANADAWorldwide Shipping: $129.95


     Original LS3 Engine Applications:

• 2008–2013 Chevrolet Corvette
• 2010–2015 Chevrolet Camaro SS (manual only)
• 2008–2017 Holden Commodore family:
  • 2009 Pontiac G8 GXP
  • 2009–2013 Vauxhall VXR8
  • 2008–2013 HSV GTS
  • 2008–2015 HSV Maloo R8 and Senator Signature
  • 2008–2016 HSV Clubsport R8
  • 2014–2017 Chevrolet SS
  • 2015–2017 Holden Commodore
• 2008–2016 Holden Caprice family:
  • 2008–2016 HSV Grange
  • 2015–2017 Holden Caprice-V
