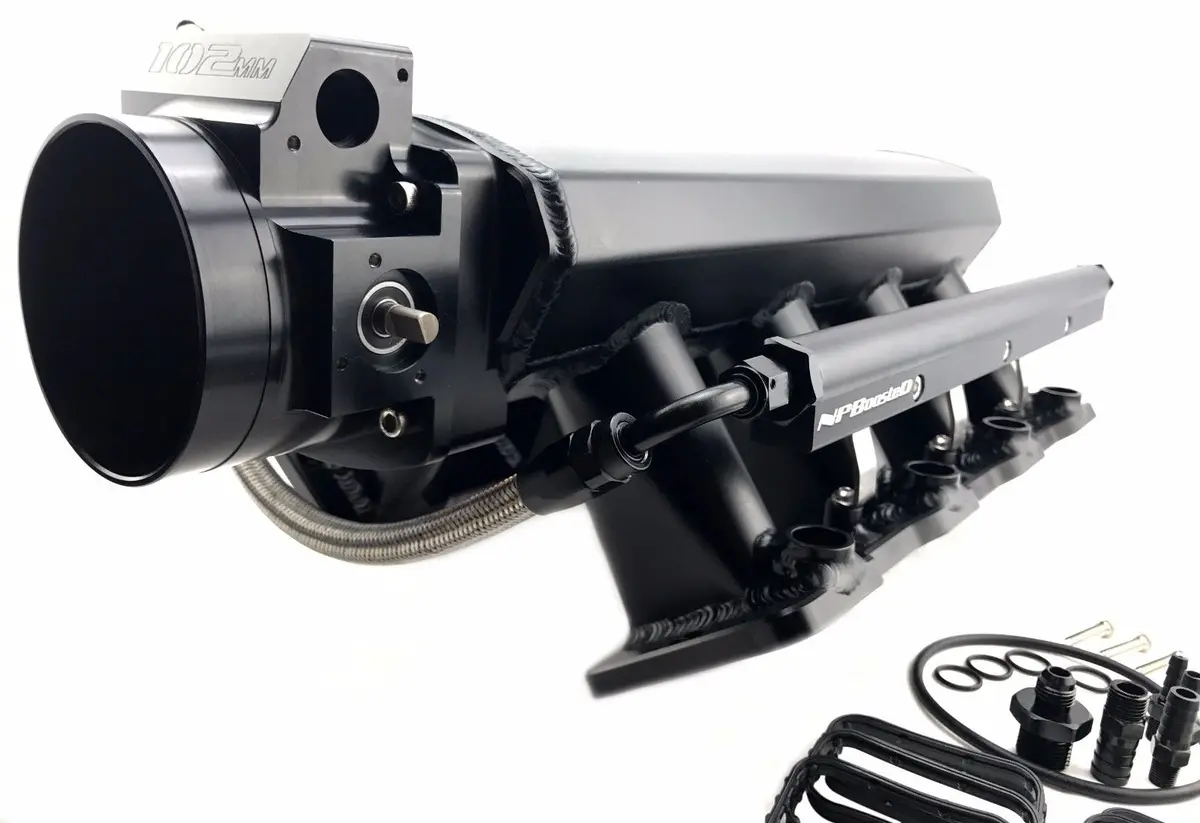

Custom tall aluminum intake manifold for GM LS, LS1, LS2, and LS6 engines—includes 102mm electronic throttle body for enhanced airflow and performance

Description

LS1 LS2 LS6 / 6.0L 5.7L 5.3L 4.8L / Tall Custom TIG Welded NPboosted Intake Manifold Kit102mm Throttle Body & Fuel Rails w/ AN fittings  (Tig Welded Aluminum) / LS LS1 LS2 LS6 Long Length 210mm Raised Port Height (Inner Manifold Velocity Stacks)  ~102mm Large Mouth Throttle Body Kit Included~ Fuel Rails Included With mounting Hardware and Steel Braided Center Connecting Fuel Line

CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-BASED)

• 4.8 L / 293 CI (LR4)
• 5.3 L / 325 CI (L33, L59, LM4, LM7)
• 5.7 L / 346 CI (LS1, LS6)
• 6.0 L / 364 CI (LQ4, LQ9, LS2)

Fits: LS based engines with “Cathedral Port” Heads shapeAftermarket Hoods Needed for Clearance on Most applications Features:Multi Port Fuel Injection typeThrottle Body Standard 4 Bolt OEM design0 Degree Throttle Body flange Angle3mm Plenum Thickness – Handles Forced Induction up to 35PSI8.3″ Manifold Height Included With Manifold kit: Lower Manifold Ports O rings – Throttle Body O rings – AN fitting O ringsBolts / Nuts / Lock washers – All Hardware NeededVacuum Line Fittings FAST FREE SHIPPING: USA & CANADAWorldwide Shipping: $129.95


     Original LS1 / LS2 / LS6 Engine Applications:

• 1997–2004 Chevrolet Corvette
• 1998–2002 Pontiac Firebird Formula, Trans Am
• 1998–2002 Chevrolet Camaro
• 2001-2004 Corvette Z06
• 2004–2005 Cadillac CTS V-Series
• 2005-2007 Chevrolet Corvette
• 2005-2006 Chevrolet SSR
• 2006–2009 Chevrolet TrailBlazer SS
• 2006–2007 Cadillac CTS V-Series
• 2005–2006 Pontiac GTO
• 2008–2009 Saab 9-7X Aero
